Ladder Logic of Exclusive Gates (XOR, XNOR) for PLC

Hi is new one Post related to PLC Programming in ladder language using LogixPro slides. Two Exclusive gates are little bit different then basic gates because XOR and XNOR simplified boolean expression are

XOR:

                    A` . B + A . B` = C

XNOR:

                    (A + B`) . (A` + B) = C

like simple combinational boolean expression.

So according to the rule of ladder logic for boolean algebra it very easy to convert into Ladder logic.

see the thumb rule here

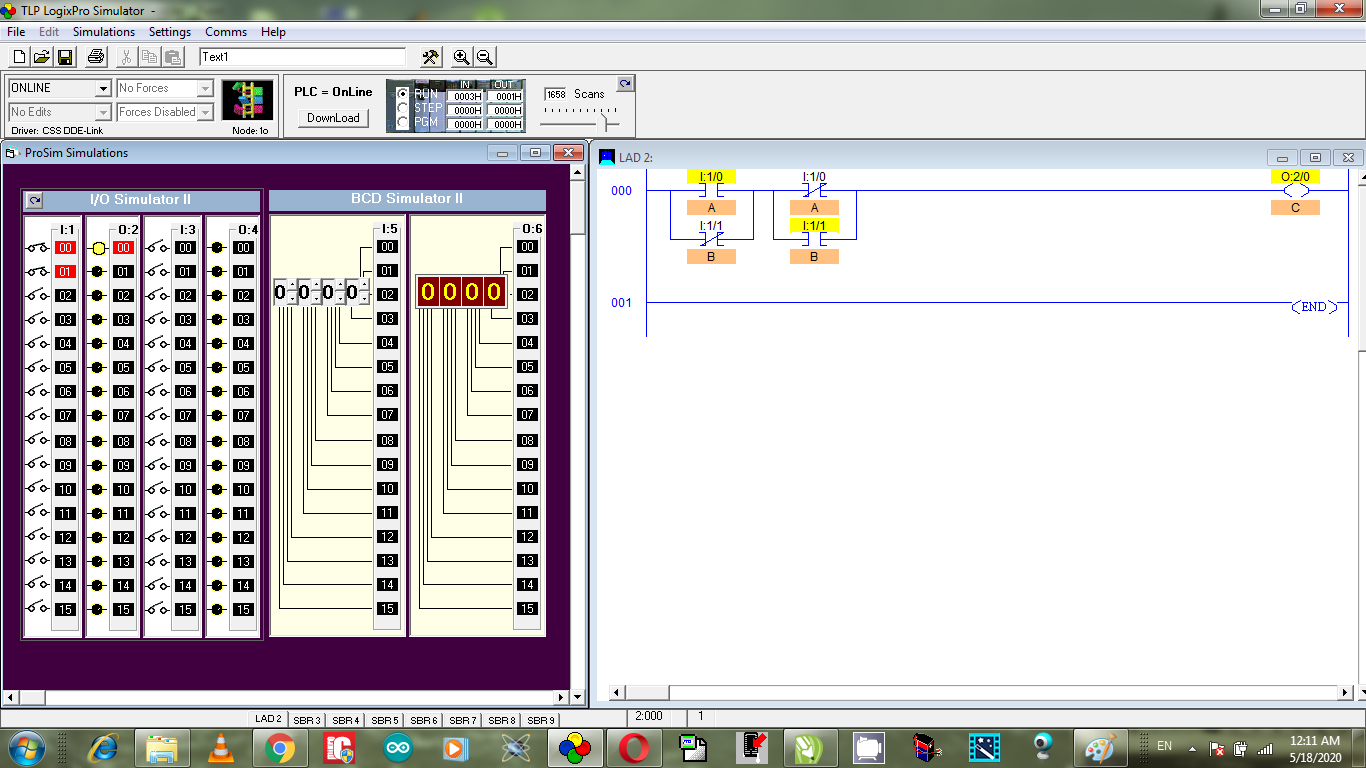

XOR Gate Ladder Logic:

XNOR Gate Ladder Logic:

if you like our work so like share and Comment please
